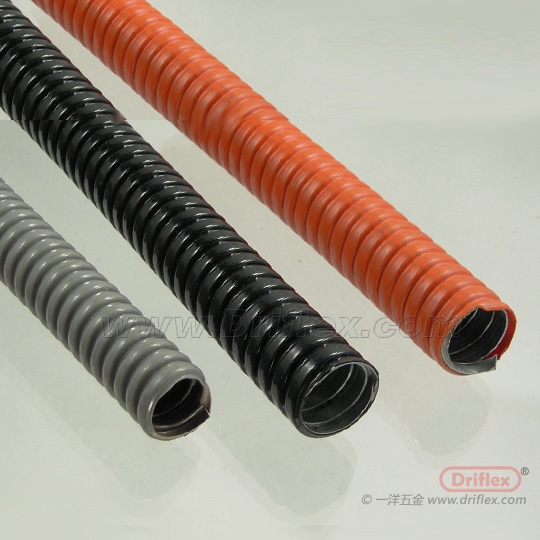

不锈钢波浪型金属软管
Model: VJ-SS
Description:
波浪型防水金属软管
不锈钢带（SS）制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或其他狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
Part No
Nominal Size
ISO (mm)
Nominal Size
US (inches)
Min.inner
(mm)
Max.outer
(mm)
Min. Bend
Radius (mm)
Length
(M/coil)
VJ-10SS
16
3/8"
12.0
16.2
50
50
VJ-11SS
20
1/2"
15.6
20.2
65
50
VJ-12SS
25
3/4"
19.7
24.2
80
50
VJ-13SS
32
1"
25.2
30.5
100
50
VJ-14SS
40
1-1/4"
32.2
39.0
130
25
VJ-15SS
50
1-1/2"
38.0
46.3
152
30
VJ-16SS
63
2"
50.4
60.0
200
20
VJ-17SS
75
2-1/2"
62.5
73.3
250
10
VJ-18SS
90
3"
75.0
87.0
300
10
VJ-19SS
100
4"
98.5
113.0
390
5
Model: VJ-SS
Description:
波浪型防水金属软管
不锈钢带（SS）制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或其他狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
|
Part No |
Nominal Size
ISO (mm)
|
Nominal Size
US (inches)
|
Min.inner
(mm)
|
Max.outer
(mm)
|
Min. Bend
Radius (mm)
|
Length
(M/coil)
|
|---|---|---|---|---|---|---|
| VJ-10SS | 16 | 3/8" | 12.0 | 16.2 | 50 | 50 |
| VJ-11SS | 20 | 1/2" | 15.6 | 20.2 | 65 | 50 |
| VJ-12SS | 25 | 3/4" | 19.7 | 24.2 | 80 | 50 |
| VJ-13SS | 32 | 1" | 25.2 | 30.5 | 100 | 50 |
| VJ-14SS | 40 | 1-1/4" | 32.2 | 39.0 | 130 | 25 |
| VJ-15SS | 50 | 1-1/2" | 38.0 | 46.3 | 152 | 30 |
| VJ-16SS | 63 | 2" | 50.4 | 60.0 | 200 | 20 |
| VJ-17SS | 75 | 2-1/2" | 62.5 | 73.3 | 250 | 10 |
| VJ-18SS | 90 | 3" | 75.0 | 87.0 | 300 | 10 |
| VJ-19SS | 100 | 4" | 98.5 | 113.0 | 390 |
5 |
