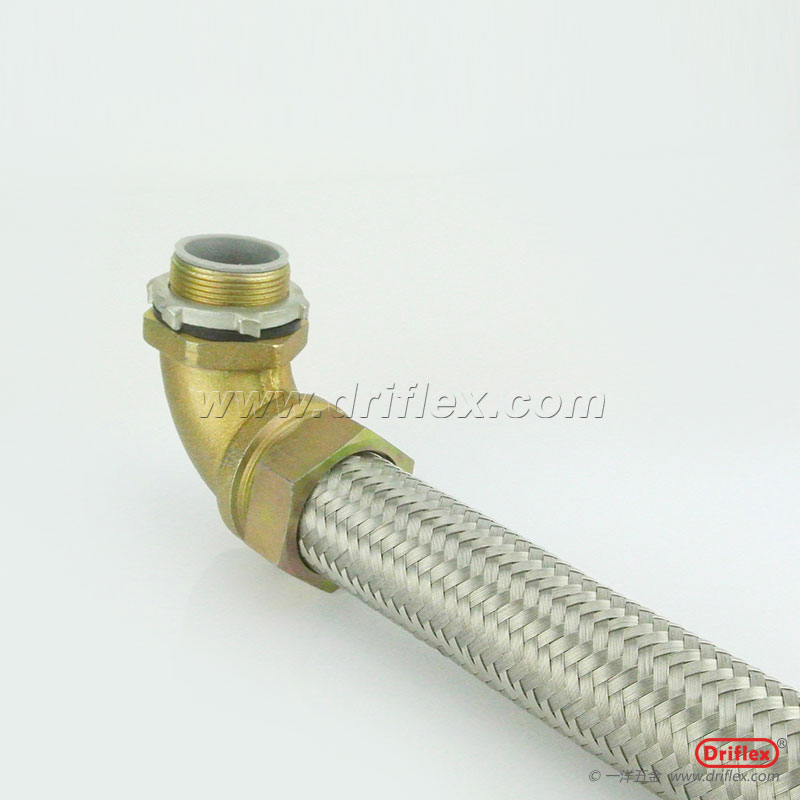

防爆金属波浪管
Model: PVJ-12
Description:
防爆金属波浪管
镀锌铁皮制成,表面被覆耐延烧PVC材料，外编织不锈钢丝.以起到防爆功效。
柔软性及防水、防爆效果.
吸收移动和震动的性能,多方向弯曲挠性.
耐温范围从-50度至+300度.
适合使用于油气,水气重之场所.
PVC包塑，有选择黑色、灰色、橙色.
适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | Min.inner (mm) | Max.outer (mm) | Min. Bend Radius (mm) | Length(M/coil) |
|---|---|---|---|---|---|---|
| PVJ-10 | 16 | 3/8" | 12.0 | 19.0 | 60 | 50 |
| PVJ-11 | 20 | 1/2" | 15.6 | 23.0 | 80 | 50 |
| PVJ-12 | 25 | 3/4" | 19.7 | 28.0 | 100 | 50 |
| PVJ-13 | 32 | 1" | 25.2 | 34.0 | 150 | 50 |
| PVJ-14 | 40 | 1-1/4" | 32.2 | 42.0 | 180 | 25 |
| PVJ-15 | 50 | 1-1/2" | 38.0 | 49.0 | 220 | 25 |
| PVJ-16 | 63 | 2" | 50.4 | 62.5 | 250 | 20 |
| PVJ-17 | 75 | 2-1/2" | 62.5 | 75.5 | 300 | 10 |
| PVJ-18 | 90 | 3" | 75.0 | 89.5 | 450 | 10 |
| PVJ-19 | 100 | 4" | 98.5 | 115.5 | 600 |
10 |
